Friday, 31 January 2025

Decoding Nameplate of Motors

 When reading the nameplate of a motor, you'll typically find the following key information:



1. Manufacturer: The brand or company that made the motor.

2. Model Number: Unique identifier for that specific motor type.

3. Serial Number: A unique number assigned to that individual motor, often for warranty or service purposes.

4. Voltage: The operating voltage required, usually given in volts (e.g., 230V, 460V).

5. Current: The amount of current the motor draws, measured in amperes (A).

6. Frequency: The frequency of the electrical supply (e.g., 50Hz, 60Hz).

7. Power: The motor's output power, commonly in horsepower (HP) or kilowatts (kW).

8. Speed: The motor's speed in revolutions per minute (RPM).

9. Service Factor: The motor's overload capacity, usually a value like 1.15, which means the motor can handle 15% more than its rated load.

10. Efficiency: How efficiently the motor converts electrical energy into mechanical energy (often given as a percentage).

11. Frame Size: The physical dimensions of the motor, used to determine compatibility with mounting and other equipment.

12. Insulation Class: The type of insulation used, which determines the temperature rating (e.g., Class F).

13. Duty Cycle: How long the motor can run before it needs to cool down (e.g., Continuous, Intermittent).

Thursday, 23 January 2025

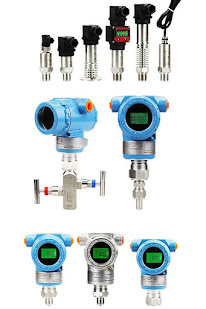

Pressure sensor classification and uses


 Pressure sensors are devices that measure the pressure of gases or liquids. They are widely used across various industries and applications. Here's a classification and some common uses of pressure sensors:


Types of Pressure Sensors:


1. Absolute Pressure Sensors:

   - Measure pressure relative to a perfect vacuum (0 Pa).

   - Used in applications where the pressure needs to be measured against a zero pressure reference (vacuum), such as in weather forecasting or space applications.

2. Gauge Pressure Sensors:

   - Measure pressure relative to the surrounding atmospheric pressure.

   - Commonly used in tire pressure monitoring systems, automotive applications, and HVAC systems.


3. Differential Pressure Sensors:

   - Measure the difference in pressure between two points.

   - Widely used in filtration systems, liquid level measurements, and airflow measurement

4. Sealed Pressure Sensors:

   - Measure pressure relative to a fixed pressure that is sealed within the sensor.

   - Used in systems where atmospheric pressure changes do not need to be considered, like in sealed enclosures or some industrial applications.


5. Intelligent or Smart Pressure Sensors:

   - Equipped with microprocessors to provide more accurate, reliable, and sometimes wireless data.

   - Used in modern industrial systems, smart homes, and IoT devices.

Common Uses of Pressure Sensors:


1. Automotive Industry:

   - Monitoring tire pressure (TPMS).

   - Engine control systems, oil pressure monitoring, and fuel pressure sensors.


2. Industrial Applications:

   - Process control in manufacturing and automation.

   - Monitoring fluid systems in pipelines, pumps, and compressors.


3. Medical Applications

   - Blood pressure monitoring.

   - Respirators and ventilators (measuring air or gas pressure).

   - Infusion pumps to monitor fluid pressure.

4. HVAC Systems:

   - Monitoring air pressure in ducts.

   - Measuring the pressure difference across filters and ventilation systems.

5. Aerospace and Aviation:

   - Measuring altitude via atmospheric pressure.

   - Monitoring cabin pressure and engine performance.


6. Oil & Gas Industry:

   - Wellhead pressure monitoring.

   - Flowline pressure and control system monitoring.

7. Consumer Electronics:

   - Smart devices for weather stations.

   - Altimeters in watches and smartphones.


Wednesday, 22 January 2025

What Is A Temperature Sensor?

 A temperature sensor is a device used to measure temperature. It works by detecting the heat energy in an environment or object and converting it into an electrical signal that can be interpreted by a system.


Classification of Temperature Sensors:


1. Contact Temperature Sensors:

   These sensors require physical contact with the object whose temperature is being measured. Examples include:

   - Thermocouples: These consist of two different metals joined together at one end. When the junction experiences a temperature change, it produces a voltage that can be measured.

   - RTDs (Resistance Temperature Detectors): These use the principle that the resistance of certain materials (like platinum) changes with temperature.

   -Thermistors: These are resistors whose resistance changes significantly with temperature, typically made from ceramic materials.


2. Non-Contact Temperature Sensors:

   These sensors measure temperature without touching the object, usually by detecting infrared radiation. Examples include:

   - Infrared Sensors: These detect infrared radiation emitted by objects, which is proportional to their temperature.

   - Optical Pyrometers: These measure temperature by detecting the light emitted by an object at high temperatures.


3. Semiconductor-based Sensors:

   -


Integrated Circuit (IC) Sensors: These are small, low-cost sensors that change voltage or current in response to temperature changes. Common types are LM35 and TMP36.


Contact temperature sensors require physical contact with the object to measure its temperature. The common types of contact temperature sensors include:


1. Thermocouples:

   -Principle: Thermocouples work on the principle of the Seebeck effect, where a voltage is generated when two different metals are joined and exposed to a temperature difference.

   - Advantages: Wide temperature range, fast response time, robust.

   - Applications: Industrial processes, heating systems, temperature measurements in engines.


2. RTDs (Resistance Temperature Detectors):

   - Principle: RTDs measure temperature by detecting changes in the resistance of a material, usually platinum, which increases with temperature.

   - Advantages: High accuracy and stability, suitable for precise temperature measurements.

   - Applications: Laboratory, industrial processes, and HVAC systems.


3. Thermistors:

   - Principle: Thermistors are temperature-sensitive resistors that exhibit a significant change in resistance with temperature. They are generally made from ceramic materials.

   - Types:

     - NTC (Negative Temperature Coefficient): Resistance decreases with increasing temperature.

     - PTC (Positive Temperature Coefficient): Resistance increases with increasing temperature.

   - Advantages: High sensitivity, inexpensive, fast response.

   - Applications: Consumer electronics, automotive, and medical devices.


4. Bimetallic Temperature Sensors:

   - Principle: These sensors consist of two metals with different coefficients of expansion bonded together. When the temperature changes, the bimetallic strip bends, which can be used to trigger a mechanical or electrical response.

   - Advantages: Simple design, reliable, no need for external power.

   - Applications: Thermostats, temperature switches.


5. Semiconductor-based Sensors (IC Sensors):

   - Principle: These sensors use the principle that the voltage drop across a semiconductor changes with temperature. Common examples include LM35 and TMP36.

   - Advantages: Compact size, low power consumption, ease of integration with digital systems.

   - Applications: Consumer electronics, environmental control, and medical devices.


Each of these types has specific characteristics that make them suitable for particular applications, depending on factors like range, accuracy, response time, and cost.

Tuesday, 21 January 2025

Types of Sensors: Instrumentation Engineering


 There are several types of sensors, each designed to detect specific physical phenomena or environmental conditions. Some common types include:

1. Temperature Sensor: Measure temperature, e.g., thermocouples, RTDs (Resistance Temperature Detectors), and thermistors.

2.Pressure Sensors: Measure pressure of gases or liquids, e.g., piezoelectric sensors, capacitive pressure sensors.

3. Proximity Sensors: Detect the presence or absence of an object or its distance, e.g., inductive, capacitive, ultrasonic, and optical sensors.


4. Light Sensors: Measure light intensity, e.g., photodiodes, LDR (Light Dependent Resistor), and phototransistors.


5. Motion Sensors: Detect movement of objects, e.g., PIR (Passive Infrared) sensors, ultrasonic motion sensors.


6. Gas Sensors: Detect the presence of specific gases, e.g., CO2, CO, and methane sensors.


7. Humidity Sensors: Measure the level of humidity in the air, e.g., capacitive or resistive humidity sensors.


8. Accelerometers: Measure acceleration or vibration, e.g., MEMS (Micro-Electro-Mechanical Systems) accelerometers.


9. Force Sensors: Measure force or load, e.g., load cells and piezoelectric force sensors.


10. Magnetic Field Sensors: Detect magnetic fields, e.g., Hall effect sensors.

11. Sound Sensors: Measure sound levels or detect acoustic signals, e.g., microphones.

12. pH Sensors: Measure the acidity or alkalinity of a solution.

13. Voltage Sensors: Measure electrical voltage levels.

Each type is tailored for specific applications, from industrial automation to consumer electronics and environmental monitoring.

Sunday, 24 May 2020

OHMS LAW EXPLAINED



OHMS Law
was named after the German Physicist George Ohms published in 1827,

OHMS Law state that when Electric current is passed through a conductor, then the potential Difference between the two point of conductor is directly proportional to the current flowing in it, provided physical condition Such as temprature,length & area of cross section should remain constant.

ओम का नियम कहता है कि जब किसी सुचालक में कि जब विद्युत प्रवाह को किसी चालक से गुजारा जाता है, तो चालक के दोनों सिरों का विभवांतर इसमें प्रवाहित धारा के समानुपाती रूप से होता है, बशर्ते कि भौतिक स्थिति जैसे कि टेंपरेचर, लंबाई और क्रॉस सेक्शन का क्षेत्र स्थिर रहना चाहिए।


Fig 1

Fig. 1 Above shows relation between Voltage and current,
where V is voltage in volts, I is current in Ampere
When proportionality is removed Resistance is multiplied by Current and equal sign is placed in between,where R is constant and inversely proportional to current.
